Fire Rated Products Schüco

We offer Schüco fire retardant products too.



The Schüco Janisol steel profile series with a basic depth of 60 mm offers the safety features of a fire protection system combined with a sophisticated, elegant stainless steel look. These can be used for flush-fitted single and double-leaf doors, fire-resistant glazing, and doors in glass walls to create elegant designs with a high level of security.

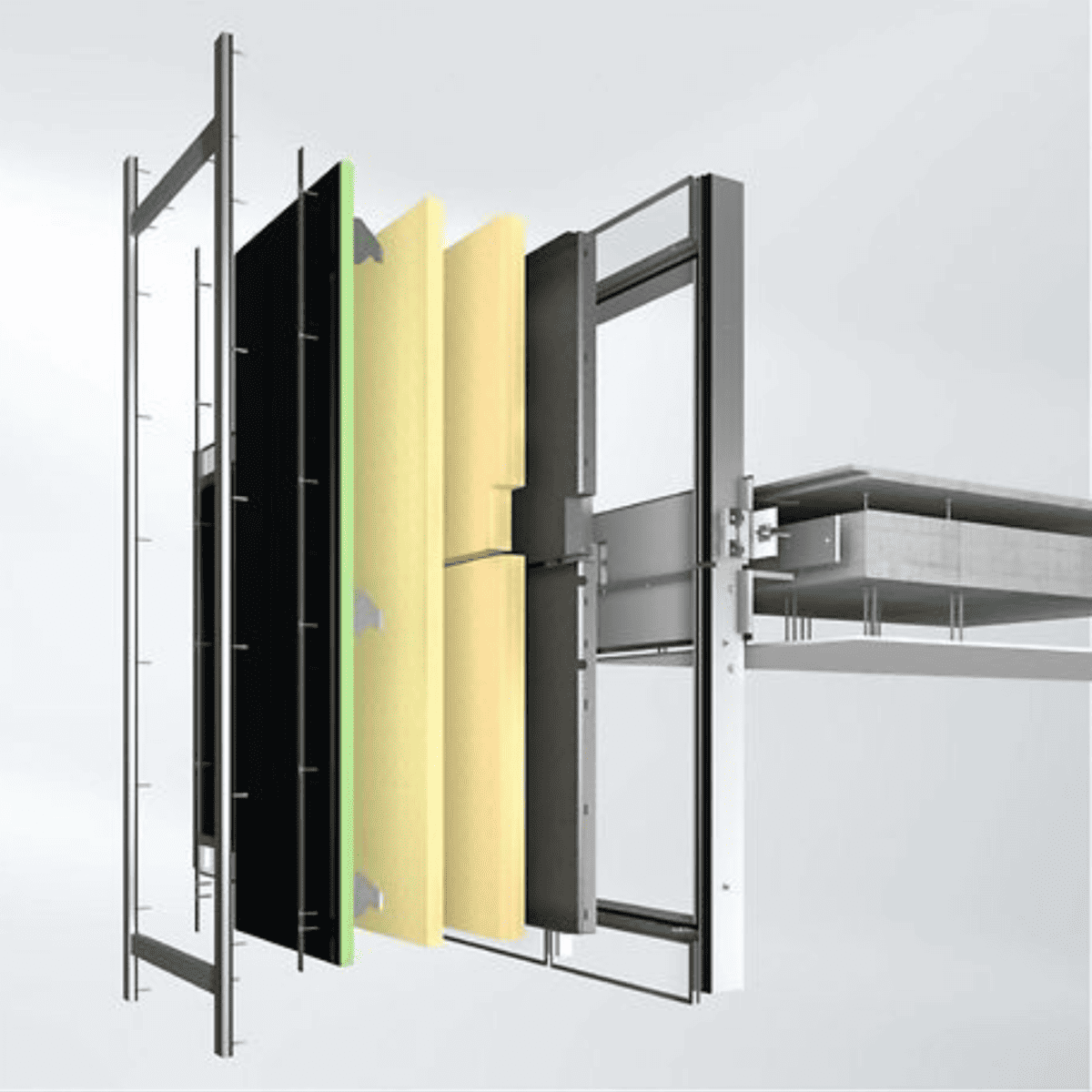

Thermally insulated hollow profiled welded sections, 60 mm deep to enable fabrication of flush fitting, single and double doors, side and fanlights. Curved heads are also available in this system. The fully insulated composite sections consist of inner and outer steel profile joined by high quality fire-resistant insulating connector pieces and partially filled with special fire and heat resisting insulating blocks.For use in fire rated facades, internal screens, entrances and shopfronts, as part of a fire rated curtain wall system. Various locks and fittings are available for the system, which have been tested for fire resistance. All doors have a double rebate seal with an attractive shadow gap running all the way around. All seals are of flame retardant material.



Fire Retardant Products

OUR PROJECTS

j
  • The profile face widths are identical to those for the Janisol, Janisol 2, Economy 50 and Economy 60 steel profile series, providing considerable design freedom.
  • Suitable for emergency exit doors. Tested in accordance with DIN EN 1125 / 179.
  • Variety of glazing options, including some with panels.
  • Multi functional steel profile system for fire and smoke protection solutions, for noise reduction to 42 dB, and burglar resistance up to WK3.
  • Comprehensive range of fittings, locks and accessories, including attractively designed stainless steel barrel hinges.
  • A variety of glass inserts is possible with e.g. contoured glazing beads for the creation of shadow joints.

The Schüco door system to be installed in complete accordance with the information published by Schüco, exclusively by authorised Schüco UK fabricators / installers.

Fire resistance rating:
  • Janisol 2 – EI30.
  • Janisol 2 – E30.
  • Janisol 3 – EI60.
  • Janisol 3 – E60.
  • Janisol C4 – EI90.
  • Janisol C4 – E90.
NBS Specifications:

This product is associated with the following NBS Create clause:

45-25-28/344 Metal doorsets

This product is associated with the following NBS clauses:

H11 Curtain walling

L20 Doors/ shutters/ hatches

The Schüco door system to be installed in complete accordance with the information published by Schüco, exclusively by authorised Schüco UK fabricators / installers.

Product reference:

Special constructions are available such as arched and burglar resistant doors.

Finish as delivered:

Consult Schüco for availability of colours and to obtain samples.

Glazing details:

Consult Schüco for recommendations and details.

Perimeter seals:

Consult Schüco for recommendations and details.



FAQ

What is the difference between general recycling and C2C recycling?

The recycling that is carried out today is generally “downcycling.” This means that materials lose technical quality during the recycling process. For example, window glass is not currently recycled into high-quality window glass. It is usually turned into container glass or another inferior product until it finally ends up as landfill. Mineral waste is turned into road foundations instead of being re-used for walls and foundations. By contrast, the aim of recycling according to the Cradle to Cradle principle is for all materials to be able to circulate at a consistent quality. This permanently preserves the value that is created in manufacturing and finishing processes.



In addition to the C2C initiative, Schüco is therefore actively involved in the A/U/F recycling initiative to improve the material cycle in window and façade construction for the long term.

What Schüco product and systems are C2C certified?

Products with C2C Bronze:



We have created a modular system which allows window, door and façade systems to be designed in accordance with the C2C Bronze standard using the SchüCal design software. Certified articles can thus be combined to make a building project-specific product, which then receives C2C verification. The systems that are used are the Schüco AWS, Schüco ADS SimplySmart and Schüco FWS systems, which have achieved the C2C Bronze standard.

The modular system will be optimised to Silver level by the end of 2017.



Products with C2C Silver:



Three products have already been certified to the high C2C Silver standard: Schüco FWS 50.SI, Schüco AWS 75.SI+ and Schüco AWS 65 NL.

All certificates can be found in Docu Center.
